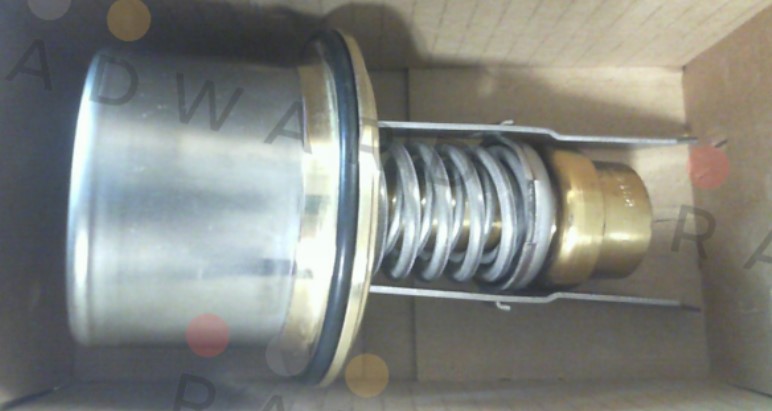

AKO : ترموستات AKO سری 237.0120

Wax-Thermostat
Application:
Spare part for the temperature regulator, type series 226.0120/0121
226G0120/0121
226.0220/0221
226.0320/0321
226.0420/0421
226.0620/0621/0622
226G0620/0621
227.0420/0421
228.0121/0123
Material:
Brass / Stainless Steel
Order number:
Thermostat: 237.0120-xxx-X(XX)

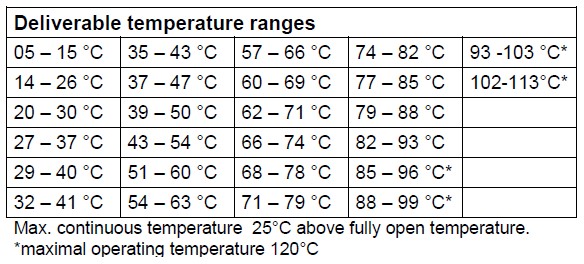

(xxx-deliverable temperature ranges, see table)

Wax-Thermostats
Wax-type elements permit that the heat energy will be transformed into mechanical energy. The wax, enclosed in a case which is dimensionally stable and resistant to pressure, increases its volume by means of becoming when the temperature goes up. The wax is tightly closed it is case by means of a rubber diaphragm. This rubber diaphragm does also have the task to transfer the pressure of the wax on the piston of the element. This movement is sufficient even when the temperature change is only little. The wax element is insensitive-element for temperature regulators which have to do its work in a reliable manner even under rough conditions.
