Fibocom : ماژول USB سیمکارت خور 4G cat16 با چیپ l860-gl LTE دارای 4 آنتن

*Model: L860-GL  IMEI:(35xxx)

* Chipset: Intel XMM7560

* LTE FDD: LTE FDD: frequency bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66

* LTE TDD: B38/39/40/41/42

* UMTS: Band 1, 2, 4, 5, 8

* Form factor: M.2 package

* Dimensions: 30.0*42.0*2.3 mm

* DL 5CA on 4 frequency bands, DL 256QAM support

* DL-MIMO: 2*2, 4*2, 4*4

* DL 4x4 MIMO: Band 1, 2, 3, 4, 7, 30, 40, 41NB, 66

* LAA (Band 46)

* Integrated GNSS

* eSIM interface support

* Working voltage: 3.135V~4.4V, typical 3.3V

* Working temperature: -10~+55°C

* Storage temperature: -40~+85°C

* AT command set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands

* Transmitting power:

-FDD&TDD LTE: 23dBm

-WCDMA: 23.5dBm

* Receiving sensitivity: FDD&TDD LTE: -98dBm~102dBm

* data

-FDD&TDD LTE: 1Gbps DL (Cat 16), 150Mbps

-UL (Cat 13, 2CA in band)

-UMTS/HSPA+: 42Mbps DL (Cat 24), 11.5Mbps

-UL(Cat 7)

* Interface

-USIM: 3V/1.8V

-PCIe

-BodySar

* Driver: Windows 10

* agree:

-CE/CCC/FCC/GCF/PTCRB and other 100+ national certifications

-AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus

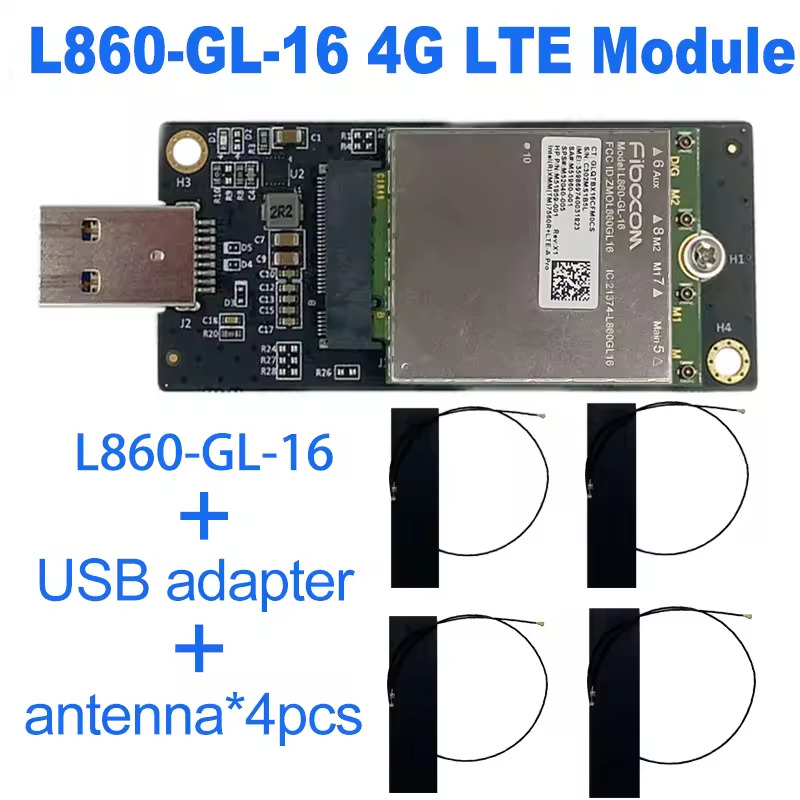

Package Included:

1*L860-GL 4G module

1*USB adapter

4*LTEantenna (30cm)
